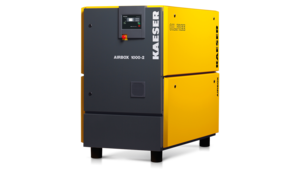

Oil-free reciprocating compressor compact unit: AIRBOX


Ready for connection, quiet-running and exceptionally durable

The AIRBOX compact unit is ready for connection and immediate operation. The integrated reciprocating compressor produces quality oil-free compressed air and features the SIGMA CONTROL BASIC electronic controller.

The technical parameters for the AIRBOX are as follows:

  • Pressure: 7 / 10 / 12.5 bar
  • Flow rate: 0.25 – 0.90 m³/min
  • Motor power: 2.2 – 7.5 kW

The AIRBOX oil-free reciprocating compressor compact unit is perfect for applications requiring pure compressed air, such as in laboratories, in the pharmaceutical industry and in the beverage and food industry.

Your advantages

  • 24/7 compressed air availability – even at high temperatures:
    Clever air flow design ensures optimal compressor block and motor cooling, which allows 100 % duty cycles and reliable operation in ambient temperatures up to 30 °C.
  • No need for additional soundproofing:
    40 mm-thick soundproofing, cooling air flow with multiple bends, an acoustically decoupled compressor block, the optimised length of the inlet air line and effective soundproofing boxes enable installation adjacent to workstations – with no need for additional sound protection measures.
Energy cost savings
Life-cycle costs

Premium quality IE3 motors ensure outstanding performance and efficiency; they reduce reduce energy losses, on average, by 45 % compared to conventional motors. resulting in significantly lower power consumption.



Product details.

Equipment

Complete package

AIRBOX CENTER – All-in-one package (open)

  • Ready for operation
  • Fully automatic
  • Super silenced
  • Vibration-damped
  • Powder-coated panels

Sound insulation

  • Lined with washable foam
  • Anti-vibration mounts
  • Dual anti-vibration mount

Compressor block

  • 'Oil-free'
  • Two cylinder
  • One or two stage

Electric motor

  • Energy-saving motor (IE3)
  • Quality German manufacture
  • IP 54
  • Insulation Class F as additional reserve

Drive

Maintenance-free 1:1 direct drive with zero transmission loss

Cooling

  • Air-cooled
  • Two fans
  • Compressed air aftercooler

Electrical components

  • Control cabinet to IP 54
  • Ventilated
  • Automatic star-delta protection combination
  • Overcurrent relay
  • Control transformer
  • EMC approval for residential electrical supplies

SIGMA CONTROL BASIC

SIGMA CONTROL BASIC compressor controller

  • Quick and simple operation with clear icons and large display
  • Fully automatic Quadro or Dual compressor control
  • Monitoring of system pressure, discharge temperature, drive motor and refrigeration compressor, if applicable
  • Remote on/off
  • Display of dryer inlet temperature
  • Counter for service, load and compressor operation hours
  • Adjustable service interval, selectable pressure and temperature units (bar/psi/MPa/°C/°F)
  • Nominal system pressure can be adjusted separately
  • Adjustable switching range
  • "Group alarm" floating contact
  • Electronic pressure transducer
Optional: Integration into compressed air management systems, e.g. SIGMA AIR MANAGER BASIC

Sample compressed air station layout with individual components
Component layout of a compressed air station with AIRBOX
  1. AIRBOX
  2. Refrigeration dryers
  3. Air receivers
  4. Filters
  1. ECO DRAIN condensate drain
  2. Air-main charging system
  3. SIGMA AIR MANAGER BASIC
Technical specifications

The technical specifications can be found in this brochure:
