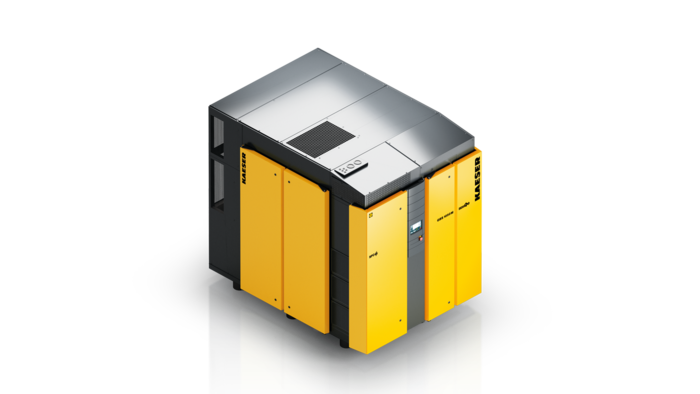

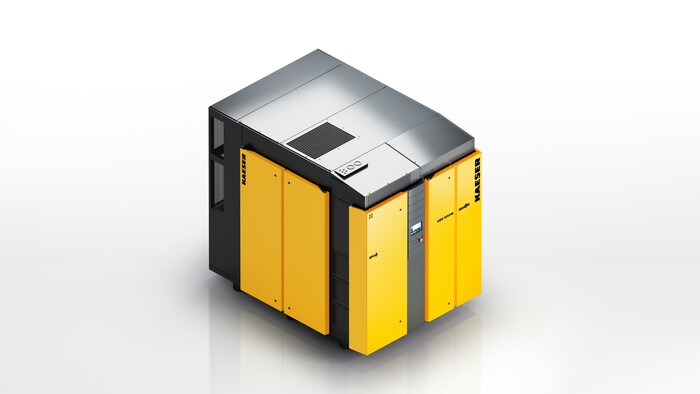

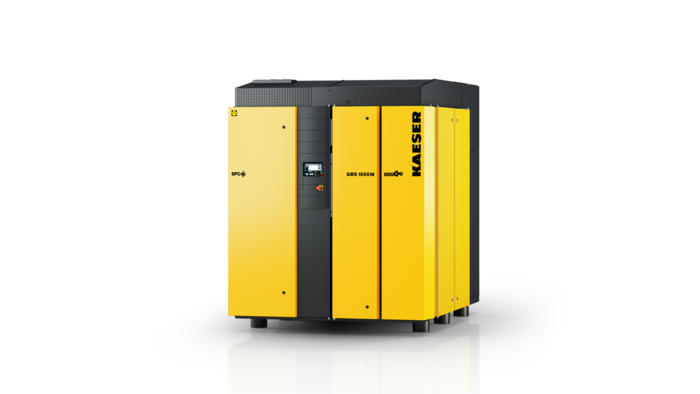

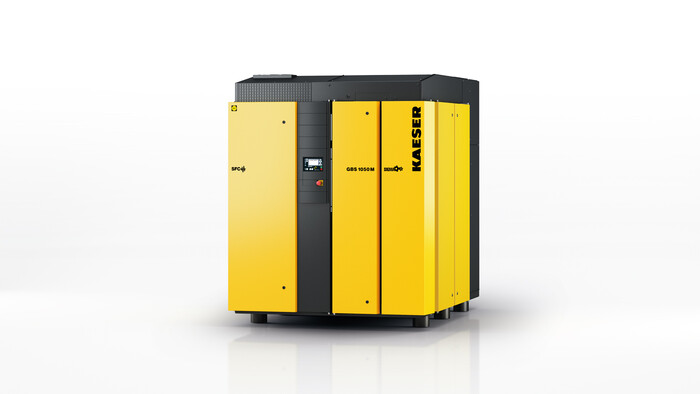

Kaeser expands its range of high efficiency rotary screw blowers
The GBS series of rotary screw blowers from Kaeser draws on decades of expertise in the development of highly efficient rotary screw compressors and automation technology, as well as extensive experience in delivering smart machines that can meet the needs of Industrie 4.0 environments.
Like all other Kaeser rotary screw blowers, the GBS series models are up to 35 percent more efficient than conventional rotary lobe blowers. They also deliver significant energy advantages compared to many other rotary screw blowers and turbo compressors available on the market. Whatsmore, the efficiency of the GBS series rotary screw blowers remains consistent across the control range, rather than just at certain points, which makes them a particularly attractive alternative to turbo compressors.
Power transmission from the motor to the compressor is via loss-free, maintenance-free gearing, which means that the GBS series models impress with highly efficient operation and low maintenance requirements. And, these blowers are designed for space-saving installation and exceptionally quiet operation.
For fixed speed operation, Start Control (STC) versions are available. They feature an integrated star-delta starter equipped with a premium contactor, overcurrent relay and phase monitoring. The STC versions additionally feature an energy-saving IE4 Super Premium Efficiency motor.
Sigma Frequency Control (SFC) versions are also available, and feature an integrated frequency converter for dynamic adjustment of the flow rate to actual demand, with the frequency converter and motor perfectly matched to deliver consistently optimised overall efficiency. For power outputs up to 110 kW, particularly efficient synchronous reluctance motors are used.
In order to ensure that the predicted high savings are translated into reality, Kaeser guarantees the power consumption per unit of flow rate (specific power consumption in kW per m³/h) in accordance with the narrow tolerances of ISO 1217, Annexe E. An end user can therefore enjoy the peace of mind that comes with guaranteed accuracy of the projected savings and amortisation periods.
The integrated Sigma Control 2 controller ensures operational reliability and smart communication via integration into process control systems, including those with Industrie 4.0 requirements. The Sigma Air Manager 4.0 master controller is recommended for blower stations with multiple blowers, as it features control and regulation algorithms specially developed for the needs of low-pressure applications. This enables even greater energy savings and simplification of automation.
Applications with especially high energy requirements - such as the production of air for aeration in wastewater treatment facilities and bioreactors, as well as for flotation and fluidisation - are sure to benefit from this advanced automation and compressor technology from Kaeser.
The GBS series models are available to order from September 2022. For more information visit nz.kaeser.com or phone 0800 447 820.
