Kaeser opens the door of compressed air energy efficiency for Hume
Hume Doors & Timber - one of Australia’s leading door manufacturers - recently invested in an energy efficient Kaeser CSD 125 rotary screw compressor to meet the increased demand for compressed air created by the expansion of its Sydney manufacturing facility.
Hume Doors and Timber (Hume) is one of Australia's largest door manufacturers with operations in every capital city and strategically placed regional branches within Australia and New Zealand. Established over 60 years ago and now with over 1,000 employees, Hume proudly remains a 100% Australian owned company.
Hume provides innovation in doorway technology and manufactures an extensive range of products - over 2,000 to be exact - for the building industry including the; commercial and industrial, multi-unit, aged care, residential and renovation sectors. From their manufacturing facilities Hume is able to deliver specialist low volume to mass high volume production. In fact, they were the first company to introduce cold pressing technology to allow for the mass production of doors using sustainable practices - a procedure that also greatly reduces power consumption.

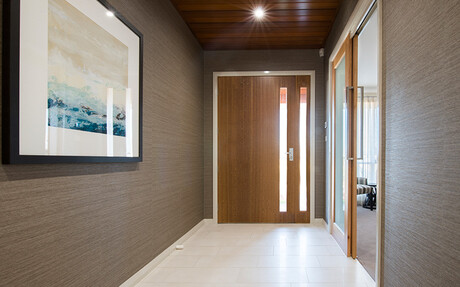

Hume provides innovation in doorway technology and manufactures an extensive range of products - over 2,000 to be exact.
Hume is committed to operating its entire business process in an environmentally sustainable manner. As such its manufacturing and distribution processes have been designed to minimise their environmental footprint. Innovation, sustainability and recycling therefore all have a key role in their manufacturing facilities. One way they try and minimise their environmental footprint is by utilising energy to its maximum efficiency.
It’s no surprise then, that when it comes to the compressed air systems at all of their manufacturing operations, Hume has long since opted for compressed air equipment that is not only reliable but also highly energy efficient. Compressed air is an important utility to Hume and can be found in use across the manufacturing process, responsible for powering the woodworking machinery such as the sanders and staple guns.

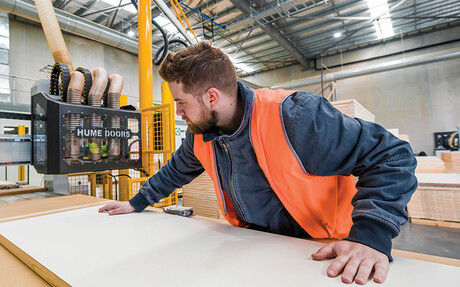

Compressed air is an important utility to Hume, here being used to power a CNC routing machine.
We have opted for Kaeser compressors for many years in our manufacturing facilities.
Hume recently expanded its manufacturing operation in Sydney. With the expansion came an increased demand for compressed air which the current system could not meet. Eddie Luke, the General Manager at Hume therefore contacted long standing compressed air supplier Kaeser Compressors for a solution.

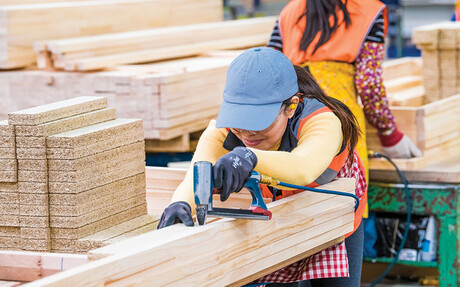

Compressed air is used here to power staple guns.
Kaeser recommended and subsequently installed a CSD 125 rotary screw compressor to meet Hume’s increased demand for compressed air in the most energy efficient manner. The CSD series rotary screw compressor from Kaeser push the boundaries when it comes to compressed air efficiency. These versatile compressors provide significant energy savings in four key ways:

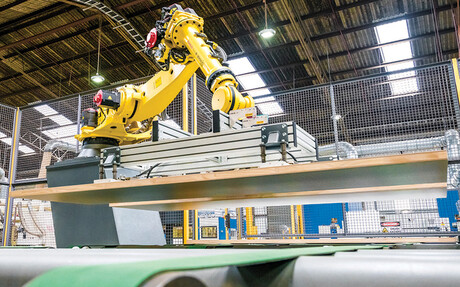

Compressed air powers a number of axis robots that vaccum grip the doors, taking them through the final stages of the production process before they are stacked ready for despatch.
At the heart of every CSD system lies a premium quality rotary screw compressor block featuring Kaeser’s energy saving Sigma Profile rotors. Operating at low speed, Kaeser’s rotary screw compressor blocks are equipped with flow optimised rotors for superior efficiency. The newly-refined rotors found in the latest generation models, together with additional optimisation measures such as reduced pressure losses, are now delivering between three and six percent better specific power performance compared to previous models.
Kaeser’s 1:1 drive design additionally delivers superior efficiency by eliminating the transmission losses associated with gear or v-belt driven systems. 1:1 direct drive rotary screw compressors provide outstanding performance and enable significant savings.

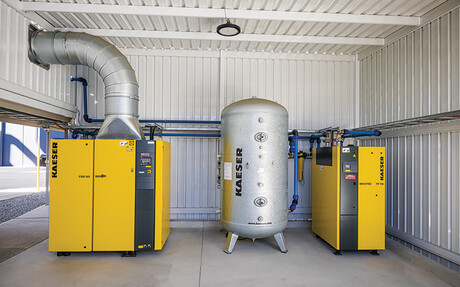

The complete new Kaeser compressed air station at Hume Doors including the CSD 125 rotary screw compressor.
Featuring an IE4 super premium efficiency drive motor further maximises energy efficiency. IE4 motors are the technology of tomorrow, as current regulations introduced in January 2015 simply require the use of IE3 class motors. IE4 motors comply with and exceed prevailing New Zealand EECA regulations for 3 phase electric motors.
Finally, the Sigma Control 2 industrial PC-based internal controller ensures efficient control and system monitoring. This dynamically adjusts flow rate to match actual compressed air demand thereby assuring further energy savings.

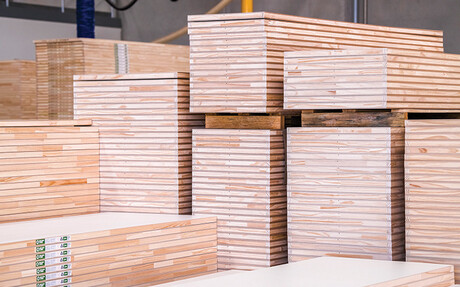

Some finished products ready for despatch.
Eddie Luke said: ‘We have opted for Kaeser compressors for many years in our manufacturing facilities. In fact we have one Kaeser that has been reliably in operation now for over 15 years! We have also realised energy savings over the years by opting for Kaeser compressors.’
